Lane Electronics, a market-leading franchised distributor for many of the industry’s major electrical, electronic and optical connector manufacturers is highlighting a range of proven interconnect solutions which may be ideally suited to the rapidly evolving Unmanned Aerial Vehicle (UAV) market.
As defence and commercial drone programmes increasingly demand lower-cost, lightweight platforms delivered within ever-shorter development cycles, designers are under pressure to identify components that combine proven reliability with immediate availability. Rather than developing new interconnect systems from scratch, engineers can benefit from established connector technologies that have already demonstrated dependable performance in high-vibration, mission-critical environments.
Growth in the UAV sector continues to be driven by defence, surveillance, aerial mapping and industrial inspection applications, alongside the increasing integration of onboard AI processing and autonomous control systems. These developments place greater demands on electrical interconnects, requiring compact, lightweight connectors capable of maintaining reliable performance under challenging environmental conditions.
Weald Electronics have been manufacturing ultra-compact and low-weight connectors for many years that excel in these demanding conditions, while premium distributor FC Lane Electronics provide high levels of availability and supply logistics resilience for their specifiers and end-users.

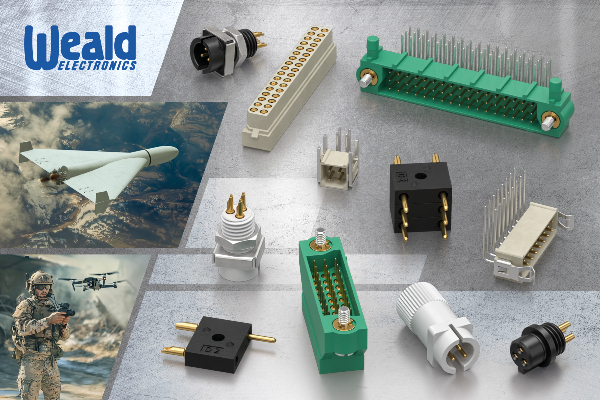

Product familes include:
The LM200 Series manufactured to BS9525 F0033, is a highly space-efficient 2mm pitch connector system available in single- and dual-row configurations. Designed for rigid PCB, flex-circuit and cable-mounted applications using crimp contacts, the two-part connectors feature UL94 V-0 high-temperature insulators, operate across a temperature range of -55°C to +125°C, and utilise aerospace-grade gold-plated contacts with positive spring latching to ensure secure operation in extreme vibration environments, including missile systems.
Complementing the LM200 is the M300 Series, a high-density three-row 2mm pitch connector offering increased contact counts while maintaining a compact footprint. The series supports simultaneous current ratings of up to 3A per contact and is available with optional jackscrew locking to simplify mating and unmating where access is restricted.
For applications requiring configurable interconnect solutions, the D2 Series provides a modular rectangular connector system comprising stackable double-contact modules. Available with pin, socket or mixed contact arrangements for polarisation, the system enables designers to create application-specific connector configurations while providing secure assembly using a single M2 fixing. Gold-plated solder bucket contacts are rated at up to 5A per contact with an operating temperature range of -40°C to +125°C.
The SMC Series offers an ultra-miniature circular connector with an overall diameter of only 8.45mm, making it ideal for compact UAV systems where weight and space are critical. Available for panel mounting or cable-to-cable free connections, the fully polarised three-way connector features snap-lock mating, gold-plated solder bucket contacts rated at 3A continuous, and protective cable hoods for reliable operation in demanding environments.
All four connector families are available from Lane Electronics’ comprehensive stockholding, supported by substantial component inventories at Weald Electronics. This combination enables rapid prototype supply and scalable production quantities, helping UAV manufacturers accelerate development programmes without compromising reliability or performance.
Lane Electronics connectivity solutions include RF and Fibre-Optic connector and cable assemblies, widely used in defence and security applications, and is a franchised distributor for many of the industry’s leading electrical and electronic connector manufacturers including EATON Souriau, HUBER+SUHNER, HellermannTyton, Positronic, Axon’, Nicomatic and LEMO.
Backed by a strong commitment to quality, reliability and traceability procedures Lane Electronics also hold a significant number of key approvals. Next day delivery is available on more than 90% of standard products while, for non-standard products, rapid in-house development, assembly and testing of specialist military, industrial and motorsport circular connectors is available lead times which are generally much quicker than those offered by other connector suppliers.
